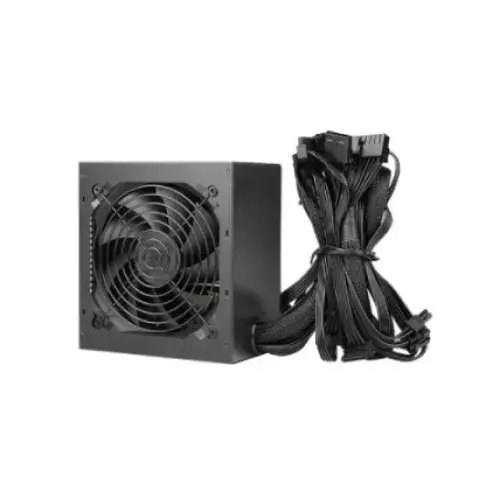

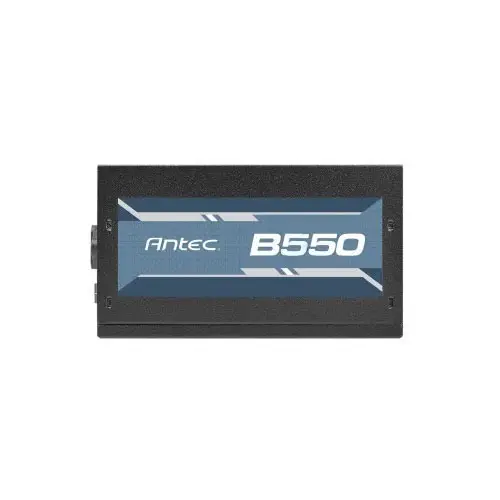

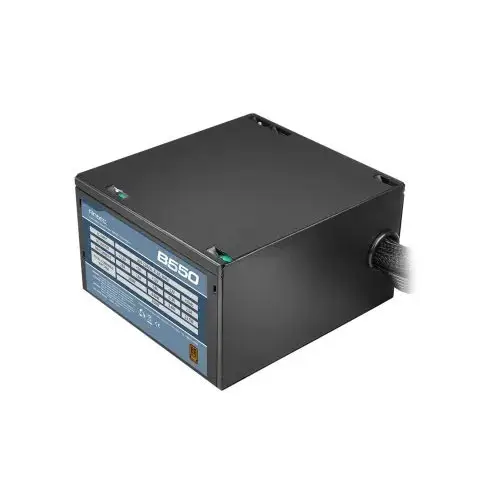

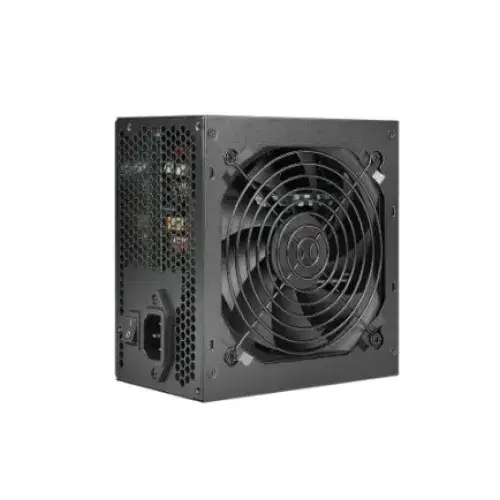

Antec B Series B550 550W 80+ Bronze Non-Modular Power Supply
Product Specifications
| Specification | Value |
|---|---|
| Certification | 80 PLUS BRONZE Certified |
| Fan Size | 120mm Silent Fan |
| Others | 120mm Silent Fan FLAT Cable Industrial grade protections: OPP/OVP/UVP/SCP Thermal Manager - An advanced fan control for optimal heat & noise management. Active Power Factor Correction (APFC) |
| Voltage | 200V-240VAC |
| Frequency Range | 50Hz |
| Current | 6.3A |
| Modular Type | Non-Modular |
| Total Power | 550W |
| Main Power | 1 x 24-pin Main Connector |
| CPU | 1 x 8(4+4)pin EPS 12V |
| PCI-E | 2 x 8(6+2) Pin PCI-E |
| SATA | 5 x SATA |
| Molex | 3 x Molex |
| Manufacturing Warranty | 6 Years |
Description
The Antec B Series B550 550W 80+ Bronze Non-Modular Power Supply is a reliable and efficient solution for mainstream PC builds. Providing reliable performance with critical safety and thermal management features. With a total output capacity of 550 watts, the Antec B Series B550 550W Power Supply provides consistent power for gaming and productivity configurations that use mid-range graphics cards and processors. It is certified with 80 Plus Bronze efficiency, which ensures less power loss and lowers electricity expenses by reducing wasted energy. The Antec B Series B550 550W 80+ Bronze Power Supply has a 120mm silent fan that runs quietly while yet providing maximum cooling performance. Antec's innovative Thermal Manager technology intelligently controls fan speed based on system temperature to properly balance heat and noise levels. It features active power factor correction (APFC), which enhances power efficiency and reduces power distortion, resulting in more reliable performance. The Antec B Series B550 550W 80+ Bronze Non-Modular Power Supply includes flat wires, which facilitate cable routing and improve ventilation within the case. As a non-modular design, it comes with all necessary wires pre-attached, making it ideal for consumers who prefer simple installation without the need for customization. CircuitShield, a suite of industrial-grade protections such as Over Power Protection (OPP), Over Voltage Protection (OVP), Under Voltage Protection (UVP), and Short Circuit Protection (SCP), protects both the power supply and its connected components from electrical faults.
