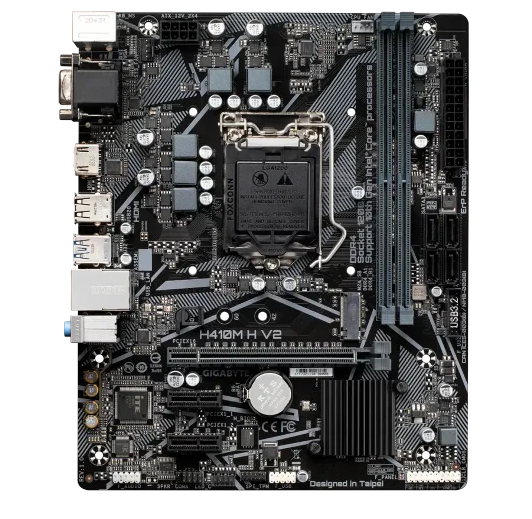

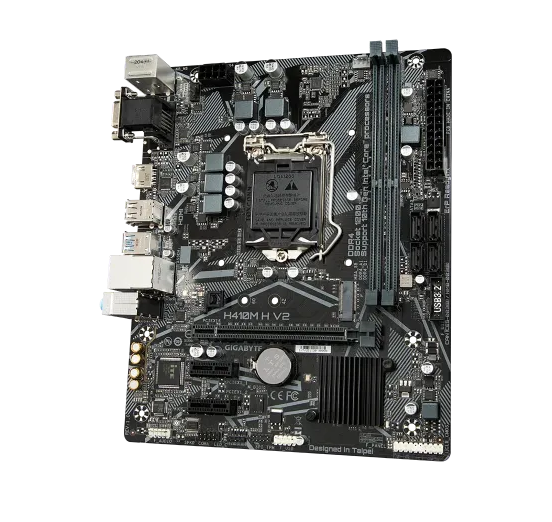

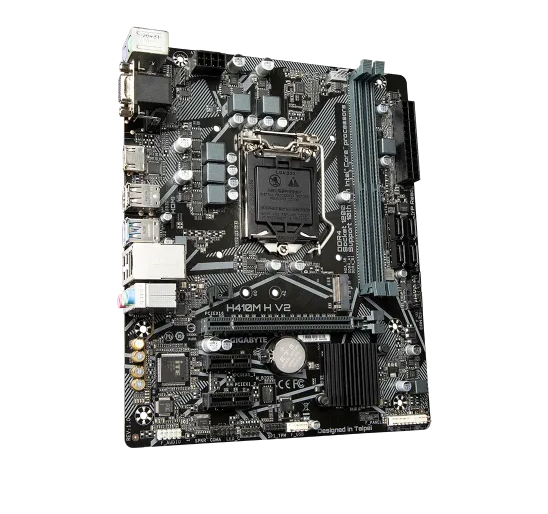

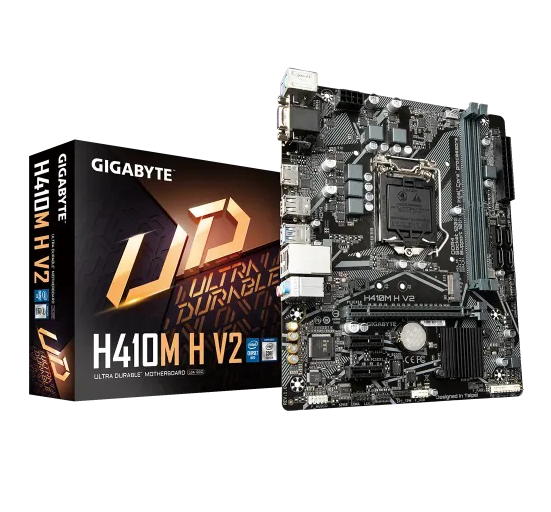

GIGABYTE H410M H V2 10th Gen Micro ATX Motherboard
Product Specifications
| Specification | Value |
|---|---|
| Supported CPU | Support for 10th Generation Intel Core i9 processors/ Intel Core i7 processors/ Intel Core i5 processors/Intel Core i3 processors/ Intel Pentium processors/ Intel Celeron processors in the LGA1200 package |
| Chipset | Intel H470 Express Chipset |
| BIOS | 1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| Form Factor | Micro ATX Form Factor: 22.6cm x 18.5cm |
| Audio | Realtek Audio CODEC High Definition Audio 2/4/5.1/7.1-channel |
| PCI | 1 x PCI Express x16 slot, running at x16 2 x PCI Express x1 slots (The PCI Express slots conform to PCI Express 3.0 standard.) Supports up to ASPM L1.2 power management protocols. |
| Memory Type | DDR4 |
| Slots | 2 x DIMM |
| Supported Memory | Intel Core i9/i7 processors: Support for DDR4 2933/2666/2400/2133 MHz memory modules Intel Core i5/i3/Pentium/Celeron processors: Support for DDR4 2666/2400/2133 MHz memory modules Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules |
| Maximum Memory | 64GB (32 GB single DIMM capacity) |
| Graphics | Integrated Graphics Processor-Intel HD Graphics support: 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz 1 x HDMI ports, supporting a maximum resolution of 4096x2160@30 Hz * Support for HDMI 1.4 version and HDCP 2.3. |
| Max Shared Memory | 512MB |
| HDMI | 1 x HDMI port |
| D-Sub (s) | 1 x D-Sub port |

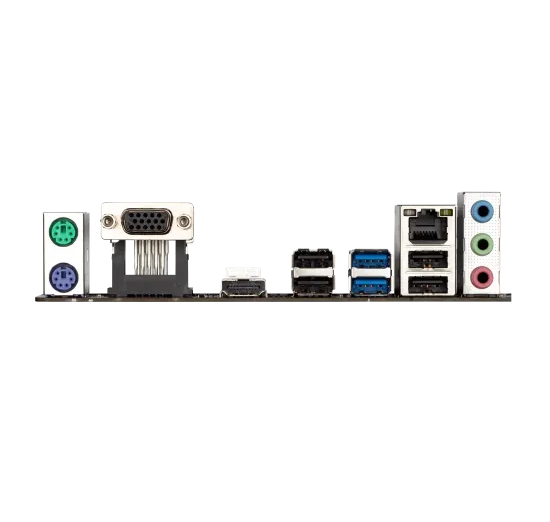

| USB (s) | Chipset: 4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header) 6 x USB 2.0/1.1 ports (4 ports on the back panel, 2 ports available through the internal USB header) |
| LAN Port (s) | Intel GbE LAN chip (1 Gbit/100 Mbit) |
| Supported Storage | 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA and PCIe x4/x2 SSD support) 4 x SATA 6Gb/s connectors Intel Optane Memory Ready M.2 connectors support up to ASPM L1.2 PCIe power management protocols. |
| RAID | Support for RAID 0, RAID 1, RAID 5, and RAID 10 |
| Internal I/O Ports | 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 1 x system fan header 1 x RGB LED strip header 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB 3.2 Gen 1 header 1 x USB 2.0/1.1 header 1 x serial port header 1 x Clear CMOS jumper |
| TPM (Trusted Platform Module ) | 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only) |
| Special Features | Support for APP Center * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. @BIOS Ambient LED EasyTune Fast Boot Game Boost ON/OFF Charge Smart Backup System Information Viewer Support for Q-Flash Support for Xpress Install |
| Bundled Software | Norton Internet Security (OEM version) cFosSpeed |
| Manufacturing Warranty | 03 Years |
Description
GIGABYTE H410M H V2 10th Gen Micro ATX Motherboard The GIGABYTE H410M H V2 10th & Gen Micro ATX Motherboard is made for Intel 10th and Generation processors. The GIGABYTE H410M H V2 Gen Motherboard has two DIMM RAM slots available which can support Bus Speeds of up to 2933MHz. The motherboard supports HDMI and D-Sub graphical output ports and can display two displays at once. The GIGABYTE motherboard also comes with 8-Channel HD Audio with High-Quality Audio Capacitors which provide crystal clear sound all around. The mother also provides you with NVMe PCIe Gen3 x4 2280 M.2 Connector, Intel GbE LAN with cFosSpeed Internet Accelerator Software, and more.
