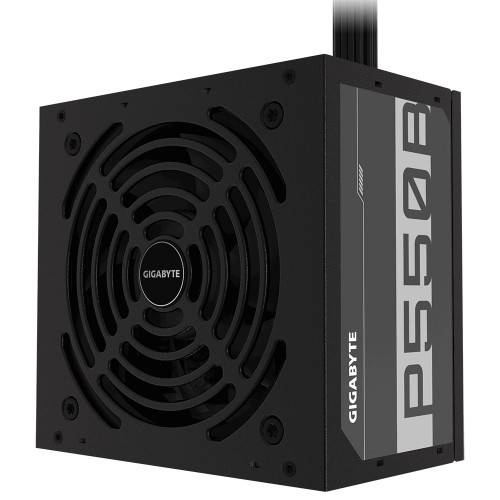

Gigabyte P550B 550W 80 Plus Bronze Certified Power Supply
Product Specifications
| Specification | Value |
|---|---|
| Efficiency (Approx.) | 85% at typical load |
| Certification | 80 PLUS Bronze |
| Fan Size | 120mm Hydraulic Bearing (HYB) Fan |
| Voltage | 100-240 Vac (full range) |
| Frequency Range | 60-50 Hz |
| Current | 8-4 A |
| Modular Type | Non-Modular |
| Total Power | 550W |
| Main Power | ATX/MB 20+4 Pin x 1 : 550mm*1 |
| CPU | CPU/EPS 4+4 Pin x 1 : 600mm*1 |
| PCI-E | PCI-e 6+2 Pin x 2 : 550mm+150mm*1 |
| SATA | SATA x 6 : 500mm+120mm+120mm*2 |
| Floppy | 4 Pin Peripheral x 3 + 4-Pin floppy x 1 : 500mm + 120mm + 120mm + 120mm *1 |
| Manufacturing Warranty | 3 Years |
Description
Gigabyte P550B 550W 80 Plus Bronze Certified Power Supply 80 Plus Bronze certified ensures to deliver 85% efficiency at 50% load. The better power efficiency leads to less power waste, less heat and less fan noise. P550B provides the best solution for the system builds. The flat cable reduces the clutter and improves the airflow in the case. 120mm Silent Hydraulic Bearing fan optimizes the noise reduction and the thermal performance. The fan speed is adjusted according to the automatic power detection. The Hydraulic Bearing fan provides longer and more stable life time. Single +12V rail provides the best power output, stability and compatibility for the hardware. It provides the easiest way to install the power cable. And it is the best design for overclocking. In order to make sure the entire computer system to operate stably under any conditions, we not only added protection designs such as OCP, OTP, OVP, OPP, UVP and SCP, but also ensured the stable operation of your system through the safety certification of various countries. It has a 03-year warranty.
