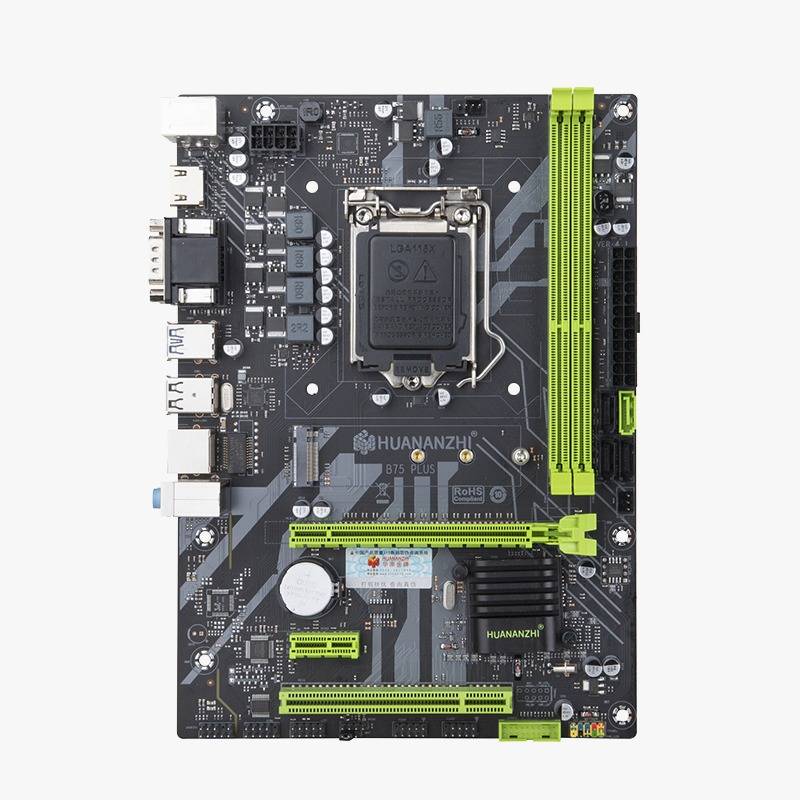

HUANANZHI B75 M.2 Motherboard
Product Specifications
| Specification | Value |
|---|---|
| Model | HUANANZHI B75 M.2 Motherboard |
| Main chipset | Intel B75 |
| CPU Socket | Support Intel LGA1155 |
| Memory slot | 2 x DDR3 memory slot |
| Memory standard | Support Dual channel DDR3 1600/1333MHz Memory，Max support 16GB |
| Storage interface | 1 x SATA3.0 6Gbps，3 xSATA2.0 3Gbps |
| Expansion Slots | 1x PCI Express3.0x16，1xPCI Express2.0x1 |
| Expansion interface | 1x M.2 2280 PCIEX4 2.0 20Gbps |
| Sound Track | 5.1 sound card |
| Network Card | Gigabit Ethernet |
| Power interface | 24PIN+8PIN |
| FAN PIN | 1xCPU_FAN PIN，1xSYS_FAN PIN |
| power supply | 5-phase power supply |
| PCB layers | 4-layer PCB |
| Dimension | 240*170MM M-ATX |
| Rear panel interface | 1xPS/2 Mouse and Keyboard port，2xUSB2.0，2xUSB3.0，1xRJ45Network card interface，1x3-hole audio interface，1x VGA，1x HDMI，1xCOM |
| Front panel interface | 2 x USB2.0 PIN，1 x USB3.0 PIN，1 xFront audioPIN，1xCOM PIN |
| Support system | Windows7 Windows10 Windows11 |
| BIOS | AMI UEFI BIOS |
| Packing list | 1 x Motherboard，1 x SATA data cable，1xWarranty card，1xI/O shield back plat |
Description
This motherboard features 2×DDR3 memory slots supporting dual-channel DDR3 1600/1333MHz, offering stable and efficient performance. It includes 1×SATA3.0 (6Gbps) and 3×SATA2.0 (3Gbps) ports for storage, along with 1×PCI Express 3.0 x16 and 1×PCI Express 2.0 x1 slots for expansion. A high-speed M.2 2280 PCIe x4 2.0 (20Gbps) slot is available for fast SSDs. The 5-phase power supply ensures reliable operation, while connectivity options include 2×USB 2.0, 2×USB 3.0, internal USB 2.0 and USB 3.0 headers, plus VGA, HDMI, and COM ports for versatile display and device support.
This motherboard features 2×DDR3 memory slots supporting dual-channel DDR3 1600/1333MHz, offering stable and efficient performance. It includes 1×SATA3.0 (6Gbps) and 3×SATA2.0 (3Gbps) ports for storage, along with 1×PCI Express 3.0 x16 and 1×PCI Express 2.0 x1 slots for expansion. A high-speed M.2 2280 PCIe x4 2.0 (20Gbps) slot is available for fast SSDs. The 5-phase power supply ensures reliable operation, while connectivity options include 2×USB 2.0, 2×USB 3.0, internal USB 2.0 and USB 3.0 headers, plus VGA, HDMI, and COM ports for versatile display and device support.
