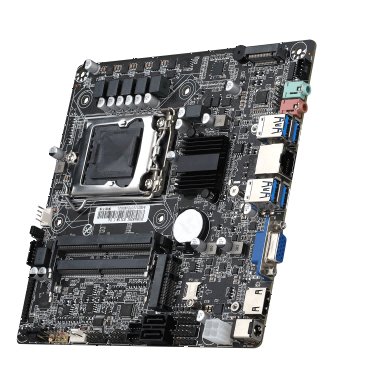

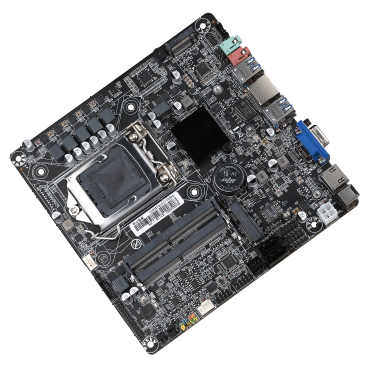

HUANANZHI H311M-VH Motherboard
Product Specifications
| Specification | Value |
|---|---|
| Model | HUANANZHI H311-D4 Motherboard |
| Main chipset | Intel 110 |
| CPU Socket | Support Intel LGA1151，support intel6/7/8/9 i3/i5/i7Core CPU |
| Memory slot | 2 x DDR4 memory slot |
| Memory standard | Support Dual channels DDR4 2666/2400/2133MHz，Max support 32GB |
| Storage interface | 4xSATA3.0 3.0 6Gbps interfaces |
| Expansion Slots | 1*PCI Express 3.0 x16，1*PCI Express 2.0 x1 |
| Expansion interface | 1xM.2 2280 NVME PCIE X4 2.0 20Gbps |
| Sound Track | Realtek High Fidelity Audio |
| Network Card | Realtek Gigabit network card |
| Power interface | 24PIN+8PIN |
| FAN PIN | 1xCPU_FAN PIN，1xSYS_FAN PIN |
| power supply | 6-phase power supply |
| PCB layers | 4-layer PCB |
| Dimension | 220*180MM M-ATX |

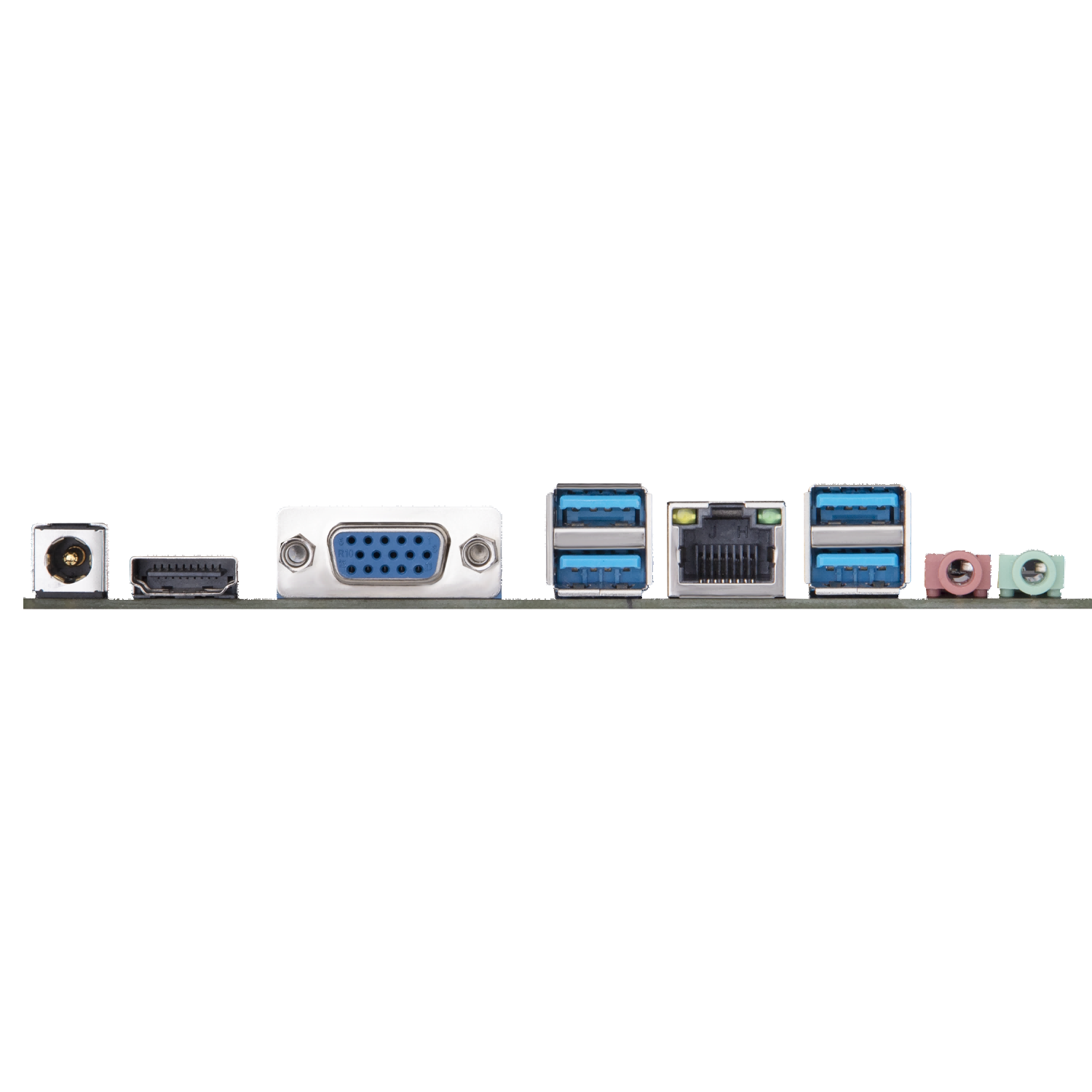

| Rear panel interface | 4xUSB2.0 480Mbps，2xUSB3.0，1xHDMI，1xVGA，1x Network card interface，1x3-hole audio interface，1xDC，1xPS/2 |
| Front panel interface | 2.5 x USB2.0 PIN，1 x Front audio PIN，1 xLVDS，1 xPower on/restart pin，1x Debug pin，1 xCMOSPIN |
| Support system | Windows7 Windows10 Windows11 （Support incoming call startup/scheduled startup/network card startup/network wake-up |
| BIOS | AMI UEFI BIOS |
| Packing list | 1 x Motherboard，1x SATA data cable |
Description
The HUANANZHI H311-D4 is a compact and reliable M-ATX motherboard designed to deliver excellent performance for Intel 6th, 7th, 8th, and 9th generation Core processors. Built with a stable 6-phase power design and a 4-layer PCB, it offers durability and consistent operation for home, office, and light gaming setups
