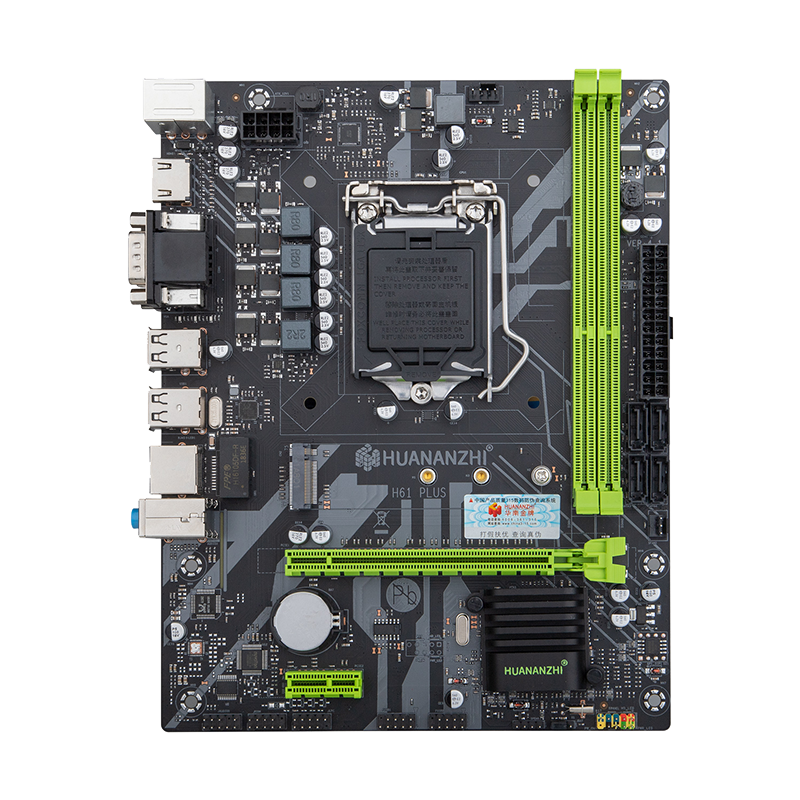

HUANANZHI H61 PLUS M.2 Motherboard
Product Specifications
| Specification | Value |
|---|---|
| Model | HUANANZHI H61 M.2 Motherboard |
| Main chipset | Intel H61 |
| CPU Socket | Support Intel LGA1155 |
| Memory slot | 2 x DDR3 memory slot |
| Memory standard | Support Dual channel DDR3 1600/1333MHz Memory，Max support 16GB |
| Storage interface | 4 x SATA2.0 6Gbps |
| Expansion Slots | 1x PCI Express3.0x16，1x PCI Express2.0x1 |
| Expansion interface | 1x M.2 2280 PCIEX4 2.0 20Gbps |
| Sound Track | 5.1 sound card |
| Network Card | 100M network card |
| Power interface | 24PIN+8PIN |
| FAN PIN | 1xCPU_FAN PIN，1xSYS_FAN PIN |
| power supply | 5-phase power supply |
| PCB layers | 4-layer PCB |
| Dimension | 215*168MM M-ATX |

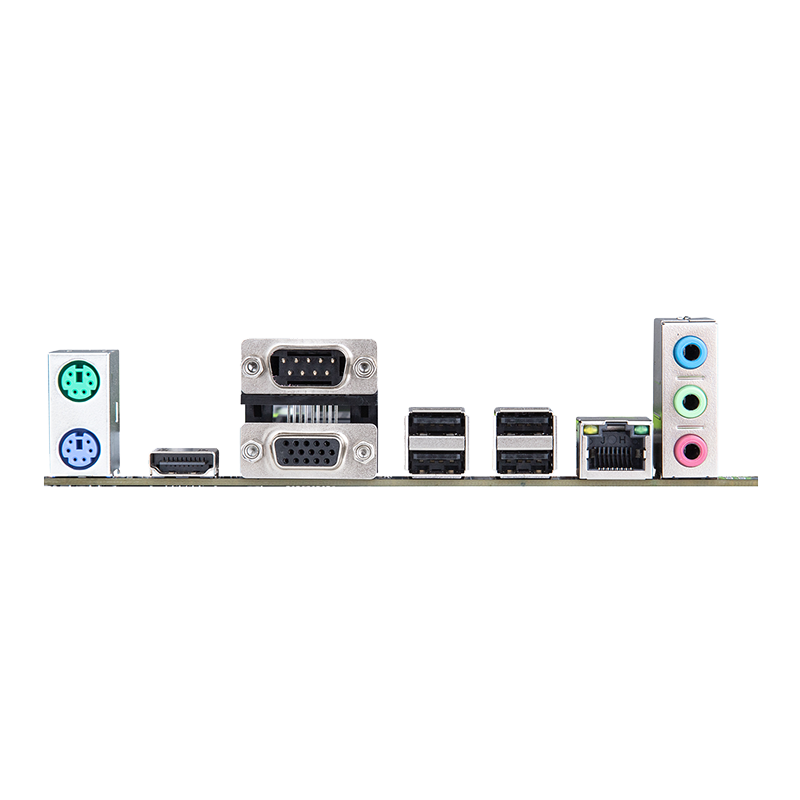

| Rear panel interface | 1xPS/2 Mouse and Keyboard port，6xUSB2.0，1xRJ45Network card interface，1x3-hole audio interface，1x VGA，1x HDMI，1xDVI |
| Front panel interface | 1 x USB2.0 PIN，1 xFront audioPIN，1xCOM PIN |
| Support system | Windows7 Windows10 Windows11 |
| BIOS | AMI UEFI BIOS |
| Warrenty | 3 Years |
| Warranty Policy | No Warranty For Physical & Burn Damage |
Description
Motherboard with Intel LGA1155 Support and High-Speed Connectivity This high-performance motherboard is designed to deliver seamless computing power and reliability. With Intel LGA1155 socket support, it ensures compatibility with a wide range of Intel processors, enabling fast and efficient computing for your desktop setup. Whether you're gaming, working, or multitasking, this motherboard is built to handle it all. Key Features: Intel LGA1155 Support: Compatible with Intel processors, providing the foundation for powerful performance and stability. 2 x DDR3 Memory Slots (Max 16GB): Supports up to 16GB of DDR3 memory, ensuring efficient multitasking and high-speed performance. Ideal for handling demanding applications and workloads. Dual Channel DDR3 1600/1333MHz Memory Support: Enhanced performance through dual-channel memory, with support for 1600/1333MHz DDR3 speeds, ensuring fast data transfer rates for smooth system operations. Multiple PCIe Slots: Includes 1 x PCI Express 3.0 x16 slot for high-performance graphics cards and 1 x PCI Express 2.0 x1 slot for additional expansion cards, enabling seamless multitasking and enhanced graphics for gaming or professional tasks. M.2 2280 PCIe x4 2.0 Slot (20Gbps): Offers ultra-fast data transfer speeds with PCIe 2.0 x4, ideal for high-speed storage devices like NVMe SSDs, ensuring fast boot times and quick access to large files. 6 x USB 2.0 Ports + 1 USB 2.0 Pin Header: Provides six USB 2.0 ports for connecting various peripherals, such as keyboards, mice, or external drives. Includes an additional USB 2.0 pin header for further connectivity options. Video Output Options: Comes equipped with 1 x VGA, 1 x HDMI, and 1 x DVI ports, providing versatile display options for connecting monitors or projectors, offering clear visuals and smooth graphics. This motherboard is perfect for users seeking a reliable, versatile, and performance-driven solution for their Intel-based system. Whether you're building a new PC or upgrading an existing one, this motherboard is designed to meet your needs with ease.
