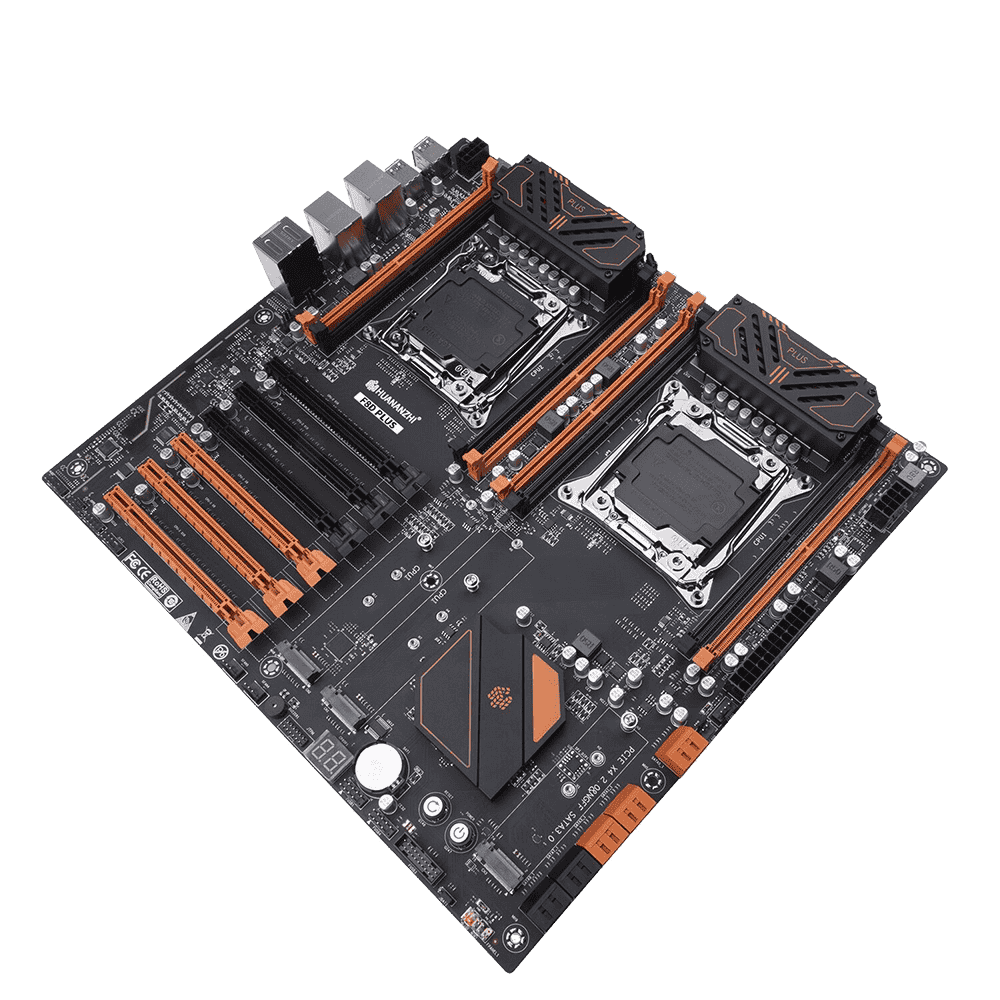

HUANANZHI X99-F8D PLUS Motherboard
Product Specifications
| Specification | Value |
|---|---|
| Model | HUANANZHI X99-F8D PLUS Motherboard |
| Main chipset | Intel C612 |
| CPU Socket | Support Intel LGA2011-3 platform processor |
| Memory slot | 8 x DDR4 memory slot，Support server memory |
| Memory standard | Support four channels DDR42400/2133/1866MHz Memory，Max support 512GB |
| Storage interface | 6 x SATA 3.0 6Gbps |
| Expansion Slots | 3 x PCI Express 3.0 x16 ，3 x PCI Express 3.0 x8 |
| Expansion interface | 2 x M.2 22110 NVME PCIE X4 3.0，1x M.2 2280 NVME PCIE X4 2.0 @NGFF SSATA 3.06Gb/s（An SSATA signal will be used） |
| Sound Track | 7.1 sound card |
| Network Card | 2 x Realtek RTL8125BG 2.5Gbps LAN |
| Power interface | 24PIN+8PIN+8PIN |
| FAN PIN | 2xCPU_FAN PIN，4xSYS_FAN PIN |
| power supply | 8+8-phase power supply |
| PCB layers | 12-layer PCB |
| Dimension | 305*330MM E-ATX |
| Rear panel interface | 4xUSB2.0 Interface，4xUSB3.0 Interface，2x Network card interface，1x3-hole audio interface |
| Front panel interface | 2 x USB2.0 PIN，1 x USB3.0 PIN，1 x Front audio pin，1 x COM PIN，1 xPower-on pin，1 x 14PIN TPM，1xMain board buzzer，1 xDiagnostic card，1 xStart/restart button |
| Support system | Windows7 Windows10 Windows11 |
| BIOS | AMI UEFI BIOS |
| Warrenty | 2-Years Warranty |
| Warranty Policy | No Warranty For Physical & Burn Damage |
Description
HUANANZHI X99-F8D PLUS Motherboard – High-Performance E-ATX Server-Grade Workstation Board for Intel LGA 2011-3 CPUs Experience powerful and stable performance with the HUANANZHI X99-F8D PLUS, a feature-rich E-ATX motherboard designed for professional workstations, gaming rigs, and server builds. Built on the Intel C612 chipset, this motherboard supports Intel LGA2011-3 processors, including Xeon E5 V3/V4 CPUs, delivering enterprise-grade computing power at an excellent value. Key Features: ✅ CPU Support: Compatible with Intel LGA 2011-3 platform processors ✅ Memory Capacity: 8 x DDR4 DIMM slots supporting up to 512GB ECC/server memory (Quad-channel, DDR4 2400/2133/1866 MHz) ✅ Storage Options: • 6 x SATA III 6Gbps ports • 2 x M.2 22110 NVMe PCIe 3.0 x4 • 1 x M.2 2280 (PCIe 2.0 x4/NGFF SATA SSATA 6Gbps) ✅ Expansion Slots: • 3 x PCIe 3.0 x16 • 3 x PCIe 3.0 x8 – ideal for multi-GPU setups and professional add-on cards ✅ Connectivity: • Dual 2.5Gbps LAN (Realtek RTL8125BG) • Rear I/O: 4 x USB 3.0, 4 x USB 2.0, 3-port audio jack, dual LAN • Onboard: USB headers, audio, TPM, COM, debug diagnostic card, power/restart buttons ✅ Audio & Power: • 7.1 HD audio support • Robust 8+8-phase power delivery • 12-layer PCB for enhanced stability ✅ Form Factor: E-ATX (305 x 330mm) – suitable for high-end workstation chassis ✅ Supported OS: Windows 7, 10, and 11 ✅ Packaging Includes: Motherboard, 2 x SATA cables, I/O shield, warranty card Whether you're building a server, content creation powerhouse, or a powerful multi-GPU workstation, the HUANANZHI X99-F8D PLUS offers outstanding flexibility, stability, and expandability for demanding applications.
